Electrical trunking accessories


Trunking has few accessories than conduit and PVC. Because in conduit and PVC wiring, all wires are distribute to the sockets and switches through the pipe.In trunking wiring the wires just occupy the space in trunking and then distribute through the conduit or PVC pipe. But trunking wiring need some accessories,so lets look about it.

1) 90° Trunking Slot

use to make 90° bend by using the slot

2) 45° Trunking Slot
 use to make 45° by using the slot

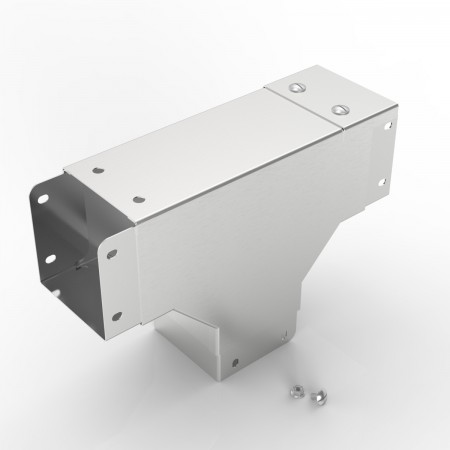

3) Tee Junction Trunking Slot
 Use to make three way distributions for wiring by using the slot

4) 4 Way Trunking Slot
 Use to make 4 way to distribute wires by using this slot.

5) Coupler

Use to join between two trunking.
